Testing Automotive Batteries:

A Comprehensive Guide

Automotive batteries are crucial components in vehicles, providing the necessary power to start the engine and run various electrical systems. Regular testing of your vehicle's battery is essential to ensure reliable performance and prevent unexpected breakdowns. In this article, we will explore three key methods for testing automotive batteries: Voltage testing, Hydrometer testing, and Load testing.

Voltage Testing

Voltage testing is one of the simplest and most common methods to assess the condition of an automotive battery. All you need is a multimeter. Follow these steps:

a. Open-Circuit Voltage (OCV): Measure the voltage of the battery when the vehicle is turned off. A fully charged battery typically reads around 12.6 volts. If the voltage is below 12.4 volts, it may indicate a partially discharged or weak battery.

b. Voltage under Load: Measure the voltage while someone tries to start the engine. A healthy battery should maintain a voltage of around 9.6 volts or higher during cranking. If the voltage drops significantly, it may suggest a weak battery.

Hydrometer Testing

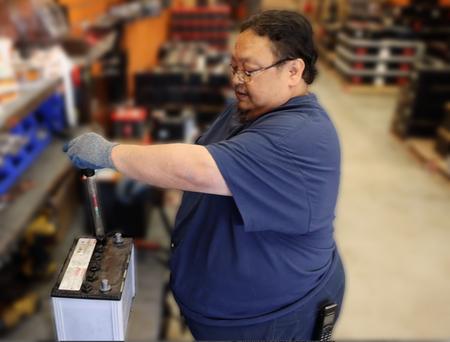

This method is applicable to traditional lead-acid batteries with removable caps. Follow these steps:

a. Remove Battery Caps: Open the caps on the top of the battery to access the electrolyte.

b. Use a Hydrometer: Extract a small amount of electrolyte with a hydrometer and check the specific gravity. A fully charged battery typically shows a specific gravity between 1.265 and 1.285. Lower readings may indicate a discharged or weak battery.

c. Temperature Adjustment: If the temperature is significantly different from 77°F (25°C), adjust the specific gravity reading using the temperature compensation chart provided with the hydrometer.

Load Testing

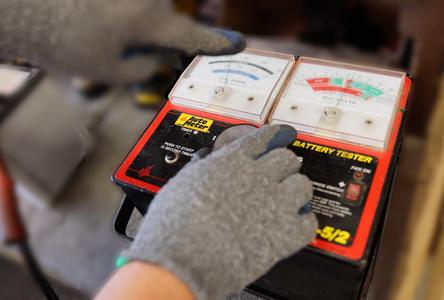

Load testing involves putting a significant load on the battery to assess its ability to deliver power under stress. Follow these steps:

a. Use a Load Tester: Connect a load tester to the battery and simulate the load of starting the engine.

b. Observe Voltage Drop: A healthy battery should maintain a voltage above 9.6 volts during the load test. If the voltage drops below this threshold, it may indicate a weak or failing battery.

c. Interpret Results: Pay attention to the load tester's results. Some testers provide a "good," "weak," or "bad" indication based on the observed performance.


Regular testing of your automotive battery using the three methods mentioned—Voltage testing, Hydrometer testing, and Load testing—provides a comprehensive assessment of its health. Combining these approaches allows for a more accurate diagnosis of potential issues, helping you avoid unexpected breakdowns and ensuring your vehicle's reliable performance. Remember to follow safety precautions and consult your vehicle's manual for specific testing procedures and recommendations.
